15.68 kW Solar and 32 kWh Battery Installation in Mannum, SA

33 LONGi panels, a 10 kW GoodWe inverter and four battery modules in Mannum, with full house backup and the main and sub boards upgraded.

Mannum, SAResidential15.68 kW32 kWhCompleted August 2026
15.68 kW Solar and 32 kWh Battery Installation in Mannum, SA

The project at a glance

Location
Mannum, SA
Completed
August 2026
Type
Residential
Solar
15.68 kW
Inverter
GoodWe ESA GW9.999K-EHA-G20, 10 kW
Battery
32 kWh
Backup
Full house backup
Roof
tin
Brands
GoodWe, LONGi

About this solar installation in Mannum

At this Mannum home the switchboard work came with the solar. The main switchboard and a sub board were upgraded, outdoor and indoor, and a Hager EH010 timer was fitted to the hot water so that controlled load is no longer always on.

Then the system itself: 33 LONGi Hi-MO X10 Explorer panels of 475 W each, a GoodWe ESA GW9.999K-EHA-G20 inverter rated at 10 kW, and four GoodWe GW8.3-BAT-D-G20 battery modules, 32 kWh usable. Full house backup is included.

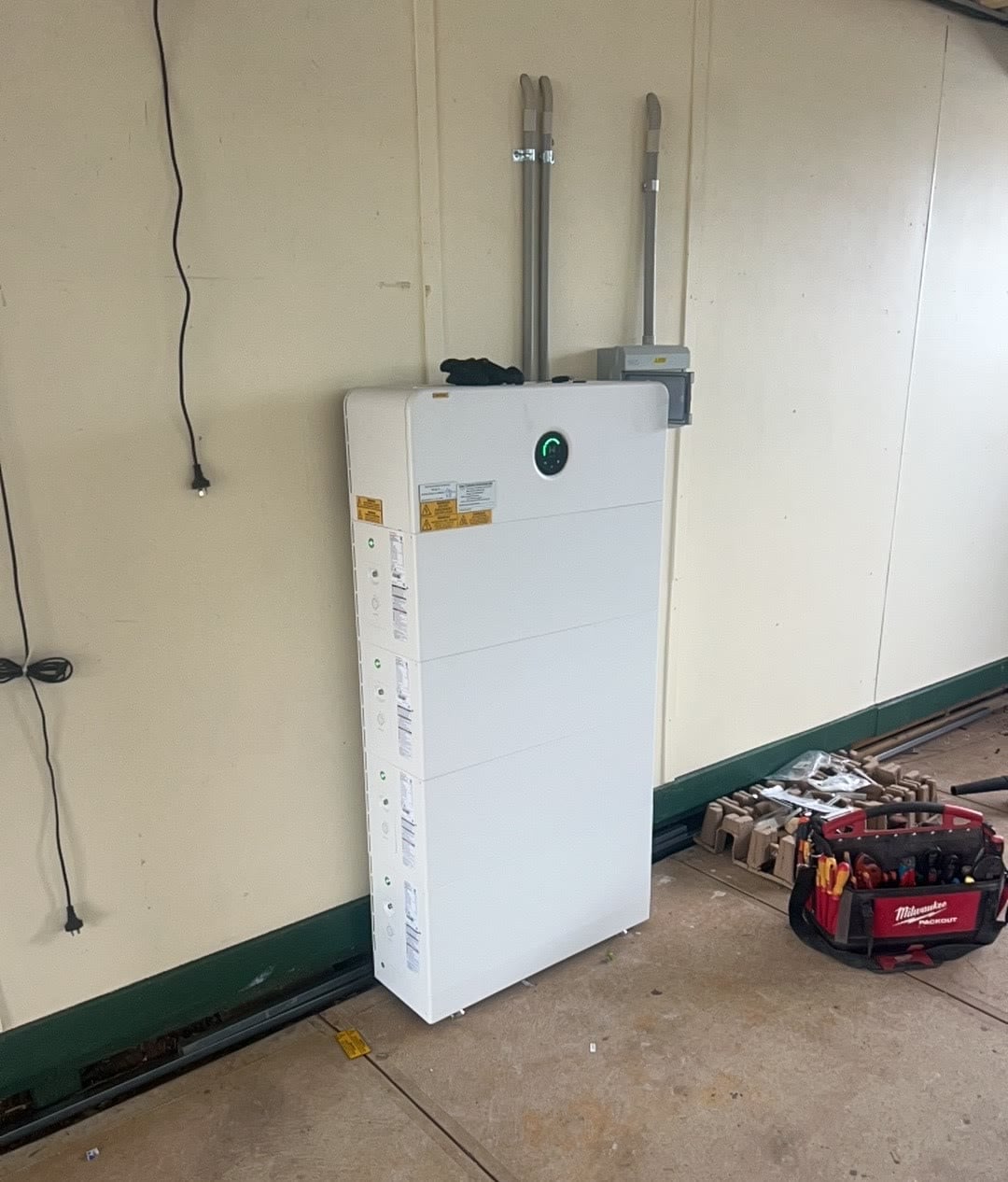

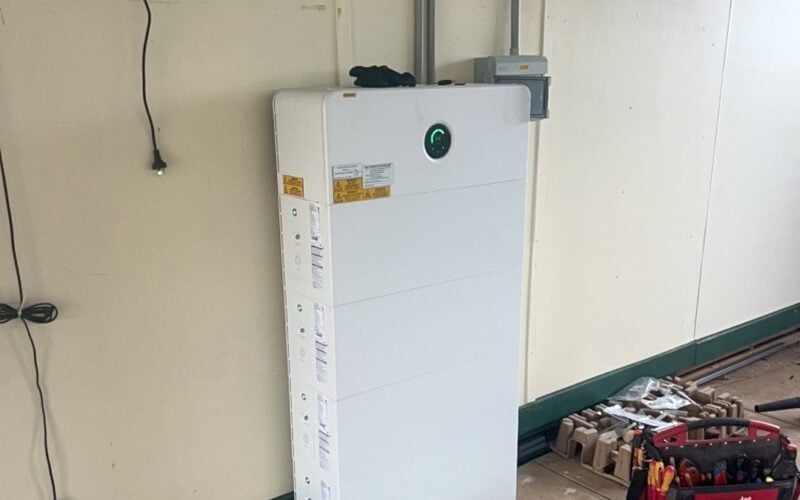

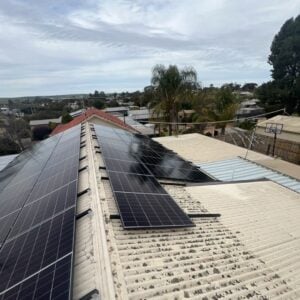

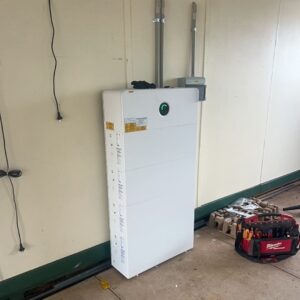

The panels are on the south-east face of an older corrugated roof, fixed with Klip-Lok brackets. The battery tower stands against a garage wall, with conduit running up to a DC isolator box.

What we installed

  • Solar panels33 x LONGi Hi-MO X10 Explorer LR7-54HVH-475M, 475 W
  • InverterGoodWe ESA GW9.999K-EHA-G20, 10 kW
  • Battery4 x GoodWe GW8.3-BAT-D-G20, 32 kWh usable
  • BackupFull house backup
  • SwitchboardMain switchboard and sub board upgraded, Hager EH010 hot water timer
  • Roof fixingKlip-Lok brackets
