14.28 kW Solar and 23.4 kWh Battery Installation in Fulham, SA

28 new Jinko panels added to the existing ones, which were restrung into a new 10 kW Sigenergy three phase inverter with three batteries and house backup.

Fulham, SAResidential14.28 kW23.4 kWhCompleted March 2026
14.28 kW Solar and 23.4 kWh Battery Installation in Fulham, SA

The project at a glance

Location
Fulham, SA
Completed
March 2026
Type
Residential
Solar
14.28 kW
Inverter
Sigenergy SigenStor EC, 10 kW
Battery
23.4 kWh
Backup
Yes, Sigenergy Gateway house backup allowance
Roof
tin
Brands
Sigenergy

About this solar installation in Fulham

Fulham already had solar, and the home wanted batteries and more panels. The old inverter came out and the existing panels were kept, restrung into a new Sigenergy SigenStor EC three phase inverter rated at 10 kW, which has enough MPPT inputs to take them.

On top of those we installed 28 new Jinko Solar Tiger Neo JKM510N-60HL4-V panels at 510 W each. Three Sigenergy SigenStor BAT 8.0 batteries come to 24.18 kWh in total, 23.4 kWh usable, and a three phase Sigenergy Gateway with a house backup allowance is included.

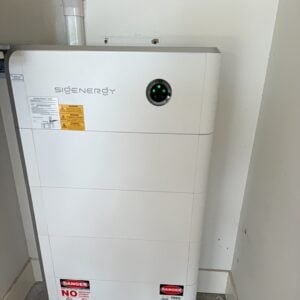

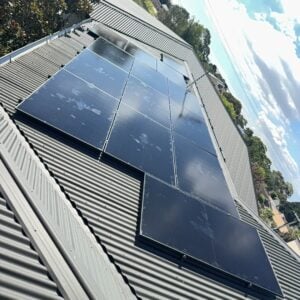

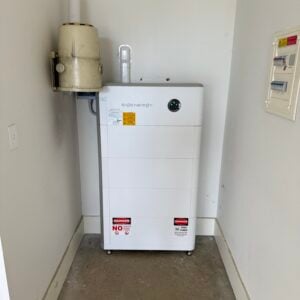

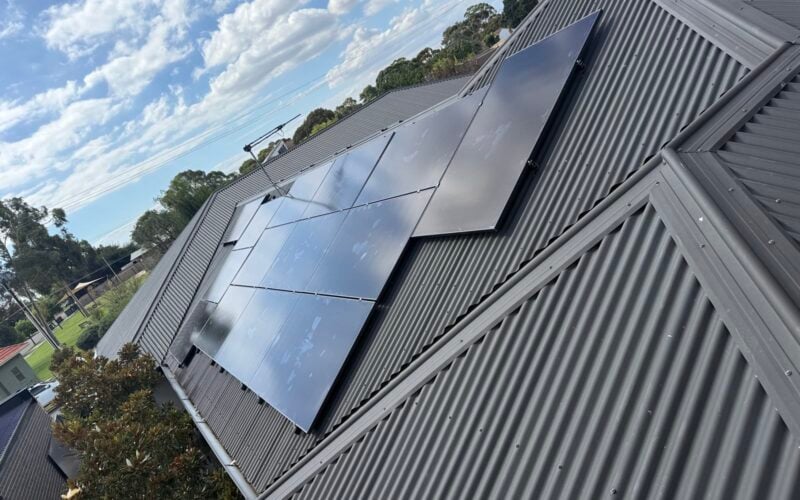

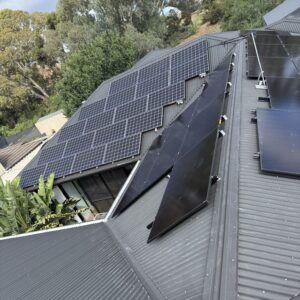

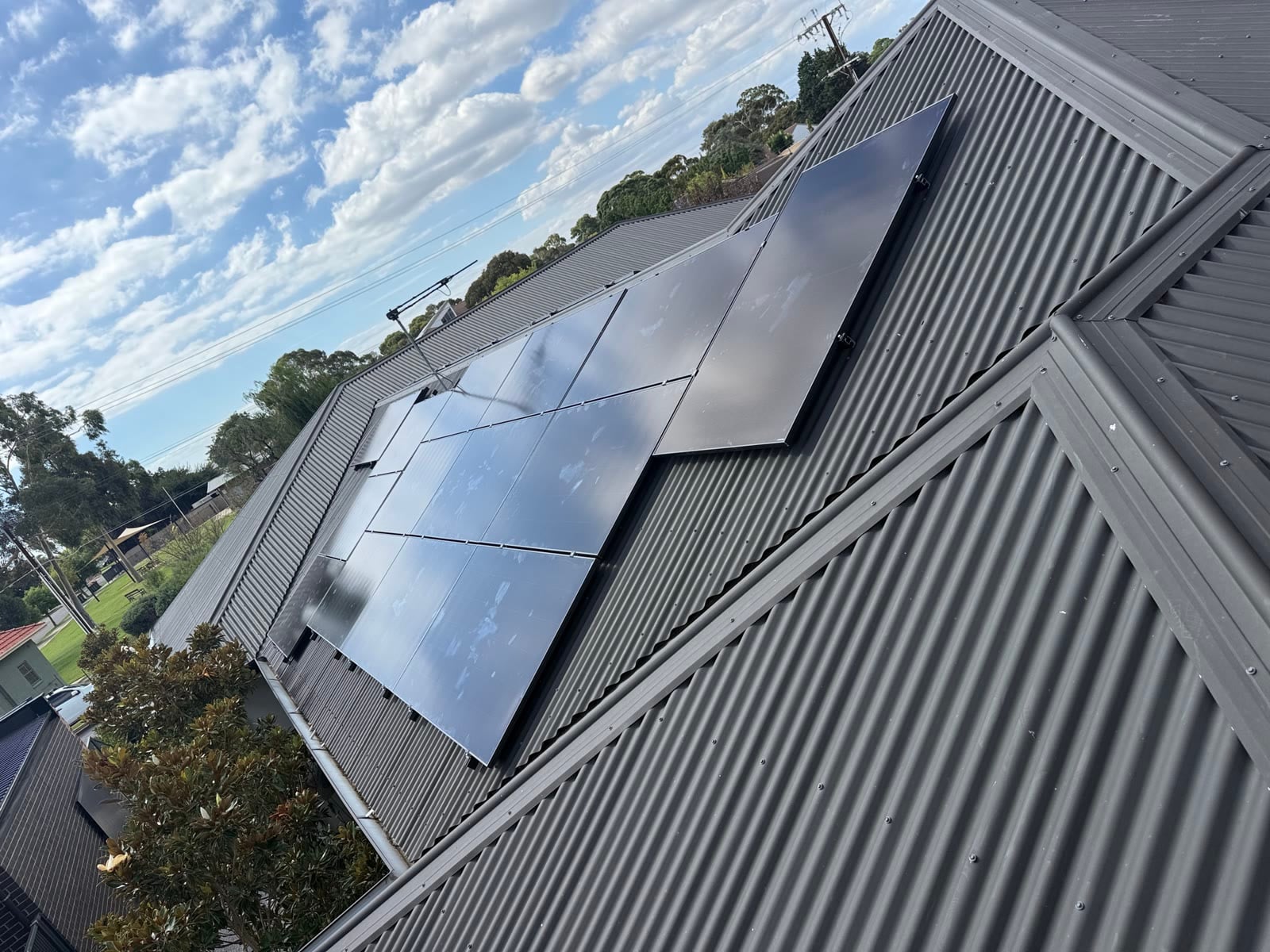

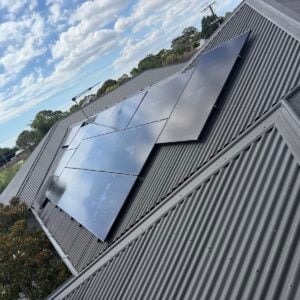

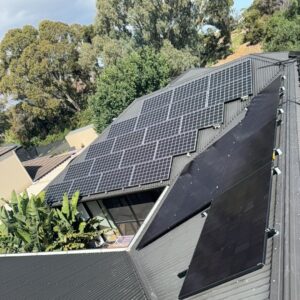

The all-black panels cover several faces of a dark corrugated metal roof. The battery stack stands in a garage corner, and there are new switchboards. We are a certified Sigenergy installer.

What we installed

  • Solar panels28 x Jinko Solar Tiger Neo JKM510N-60HL4-V, 510 W, added to the existing panels
  • InverterSigenergy SigenStor EC, 10 kW, three phase
  • Battery3 x Sigenergy SigenStor BAT 8.0, 24.18 kWh (23.4 kWh usable)
  • BackupSigenergy Gateway, three phase, house backup allowance
  • Existing solarOld inverter removed, existing panels restrung into the new inverter
