Ground-Mount Solar Installation in Oakvale Station, SA

A 32-panel ground mount and 20 roof panels, new inverters and six batteries in two cabinets at a remote outback station.

Oakvale Station, SAResidentialCompleted January 2025
Ground-Mount Solar Installation in Oakvale Station, SA

The project at a glance

Completed
January 2025
Type
Residential
Inverter
2 x 10 kVA units and 2 x 450/200 units
Roof
Ground

About this solar installation in Oakvale Station

The gear, the concrete, the sand and the metal all came in by truck. Oakvale Station is remote enough that the crew stayed on site overnight.

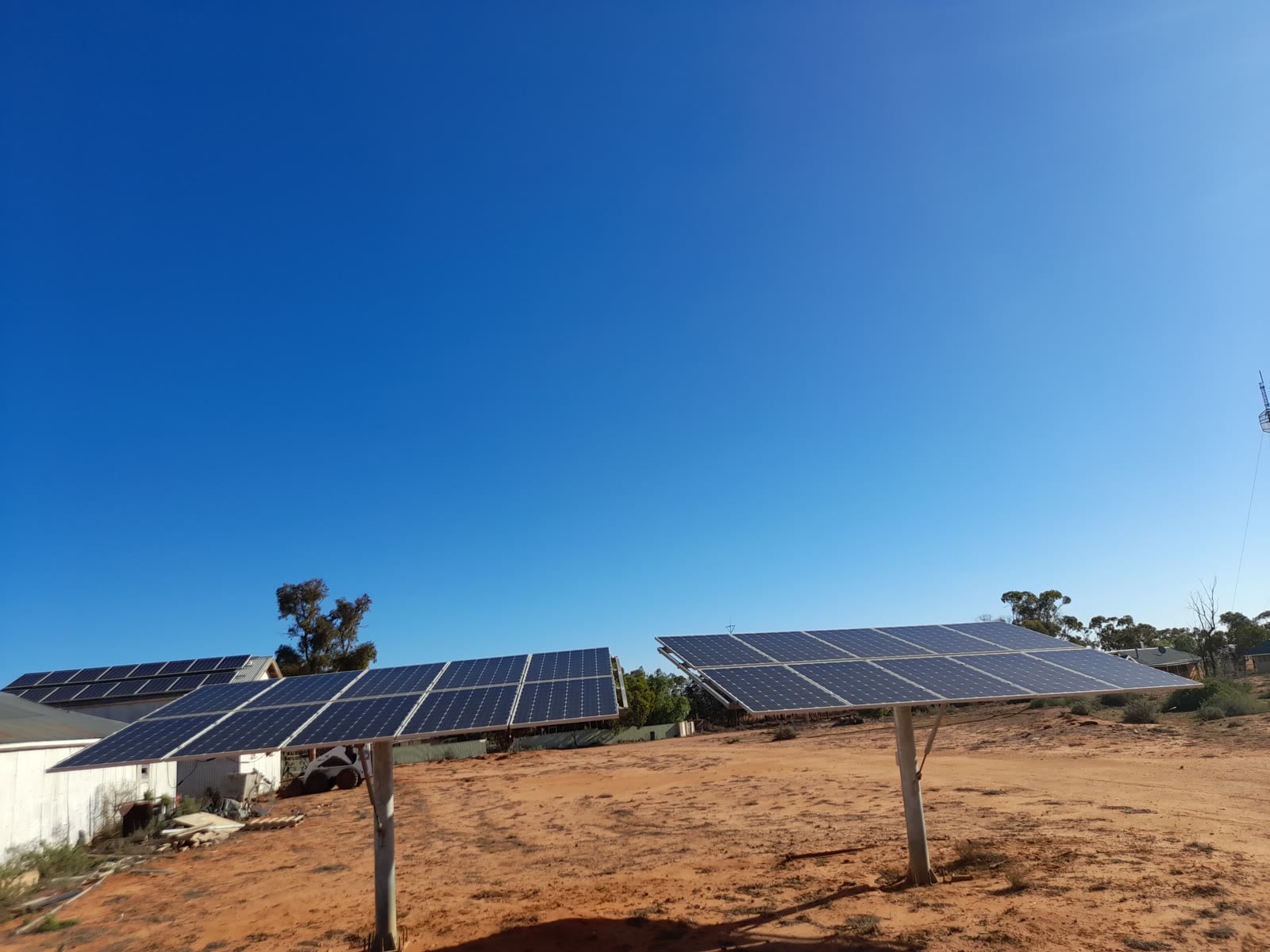

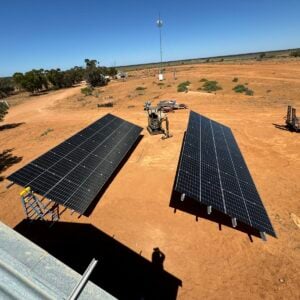

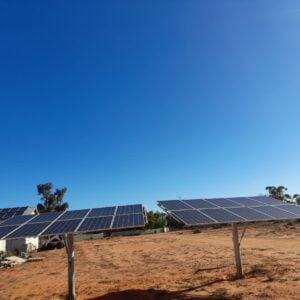

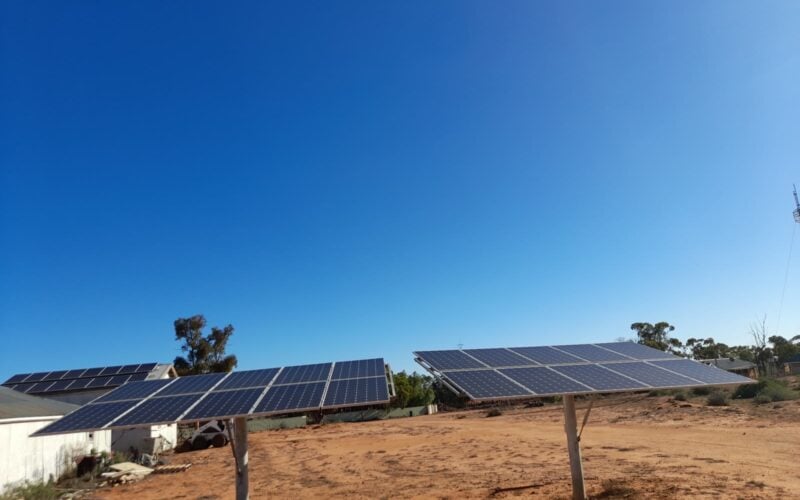

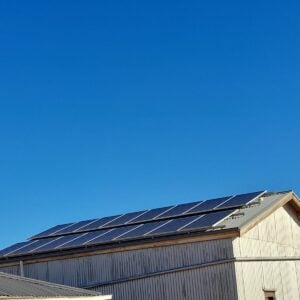

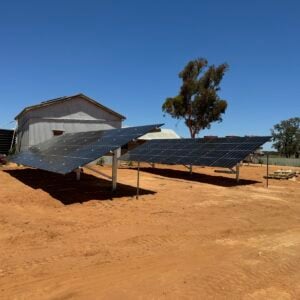

The ground frame needed holes augered and concrete footings poured, with an excavator on site for three days. The result is 32 x 440 W panels on pole frames in the red soil beside a shed, plus another 20 x 440 W on the roof of a timber building.

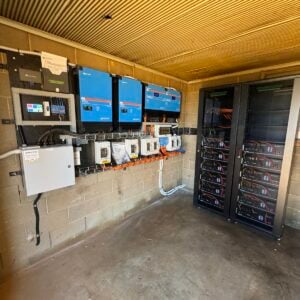

In a brick shed, two 10 kVA inverter units and two 450/200 units sit with two battery cabinets holding six US5000B batteries, all on a new powerboard. A two phase 10 mm cable runs 20 m to the distribution board.

Both arrays feed the buildings through the day and charge the batteries, which take over after dark.

What we installed

  • Roof solar panels20 x 440 W
  • Ground-mount solar panels32 x 440 W on a ground frame
  • Inverters2 x 10 kVA units and 2 x 450/200 units
  • Batteries6 x US5000B in 2 battery cabinets
  • SwitchboardNew powerboard, two phase 10 mm cable run to the DB, 20 m
  • GroundworksHole augering and concrete, excavator for 3 days
