39 kWh Sigenergy Battery Installation in West Lakes, SA

A 39 kWh usable Sigenergy battery with a 20 kW three phase inverter and blackout protection, in a West Lakes garage.

West Lakes, SABatteries39 kWhCompleted July 2026
39 kWh Sigenergy Battery Installation in West Lakes, SA

The project at a glance

Completed
July 2026
Type
Batteries
Inverter
Sigenergy SigenStor EC 20.0 TP, 20 kW
Battery
39 kWh
Backup
Blackout protection
Brands
Sigenergy

About this battery installation in West Lakes

A West Lakes garage now holds a 39 kWh usable Sigenergy battery system, with blackout protection allowed for in the job.

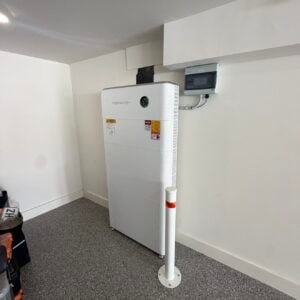

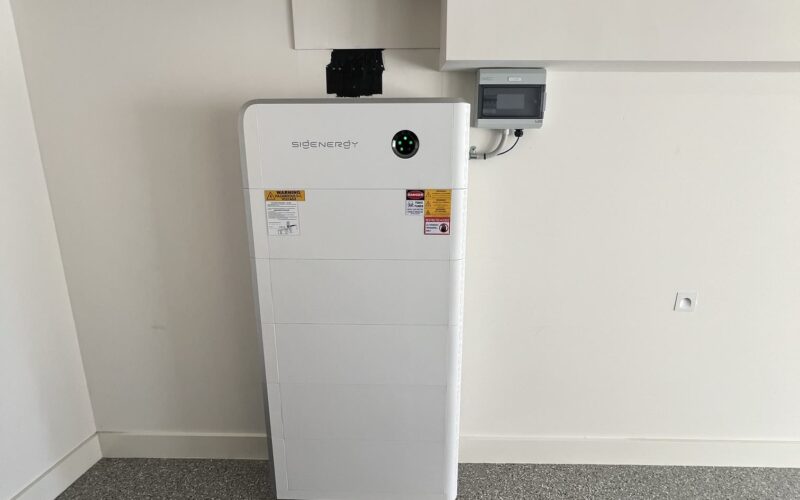

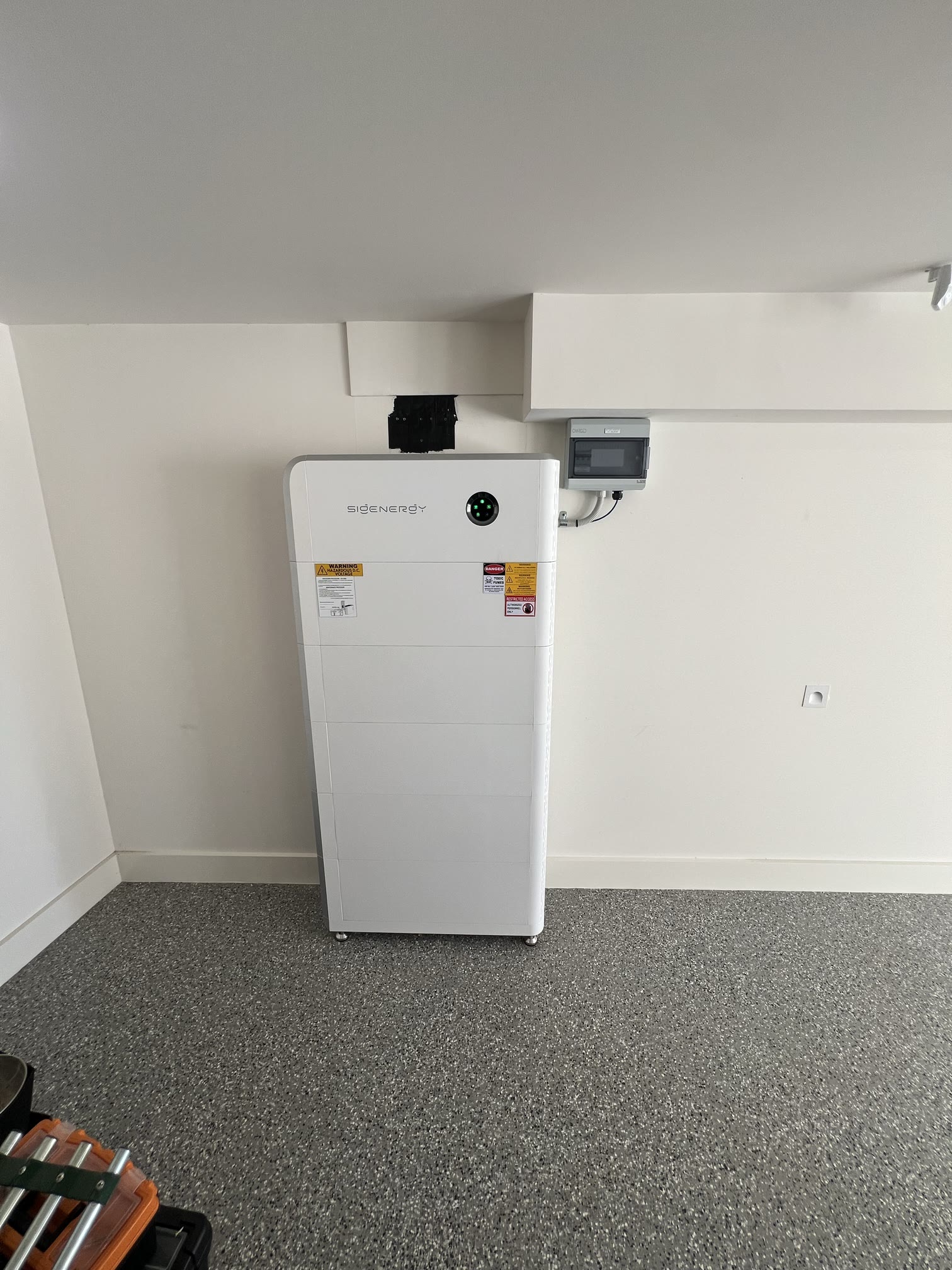

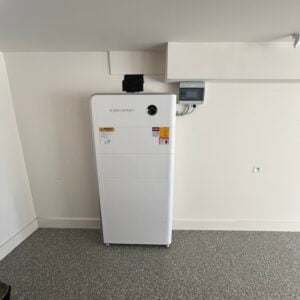

The inverter is a Sigenergy SigenStor EC 20.0 TP, 20 kW and three phase. Five SigenStor BAT 8.0 modules make up the battery at 8.06 kWh each, or 7.8 kWh usable, so 40.3 kWh in total and 39 kWh usable. The wall-standing battery sits in a clean white garage, with the inverter and DC isolator mounted beside it and a bollard in front.

The battery was connected at the main switchboard, so no switchboard upgrade was needed.

We are a Sigenergy certified installer.

What we installed

  • InverterSigenergy SigenStor EC 20.0 TP, 20 kW, three phase
  • Batteries5 x Sigenergy SigenStor BAT 8.0, 8.06 kWh each (7.8 kWh usable)
  • BackupBlackout protection
  • ProtectionBollard in front of the battery
  • SwitchboardBattery connected at the main switchboard, no upgrade needed
