27.72 kW Solar and 40 kWh Battery Installation in Felixstow, SA

63 Jinko panels (27.72 kW), two three phase Sungrow inverters and a 40 kWh battery, with a sub panel and changeover switches for whole-home backup at Felixstow.

Felixstow, SABatteries27.72 kW40 kWhCompleted July 2024
27.72 kW Solar and 40 kWh Battery Installation in Felixstow, SA

The project at a glance

Completed
July 2024
Type
Batteries
Solar
27.72 kW
Inverter
2 x Sungrow Hybrid Three Phase SH15T, 15 kW each
Battery
40 kWh
Backup
Whole-home backup
Brands
Sungrow

About this battery installation in Felixstow

Felixstow wanted the whole house to keep running when the grid drops, so the system is built around that.

The backup comes from an extra sub panel with two Hager three phase changeover switches, fed by a single Sungrow SBH400 battery with 40 kWh usable. Two Sungrow Hybrid Three Phase SH15T inverters, 15 kW each, work with it. Sungrow certifies us on the lot.

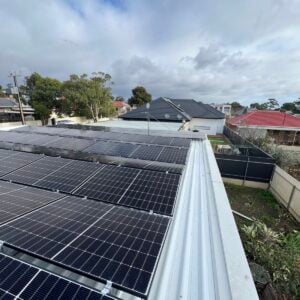

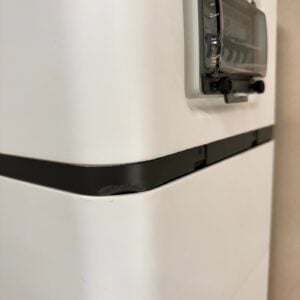

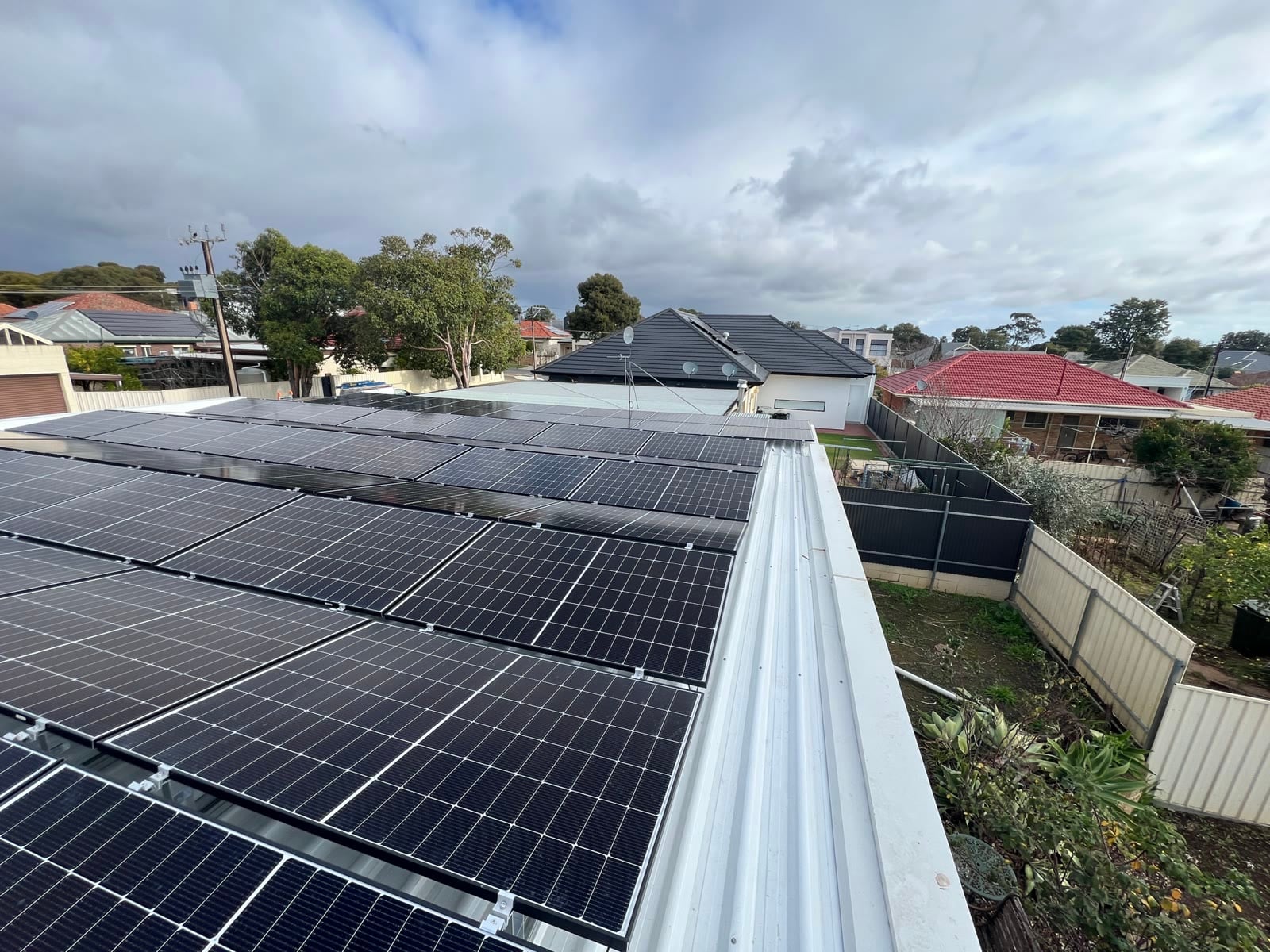

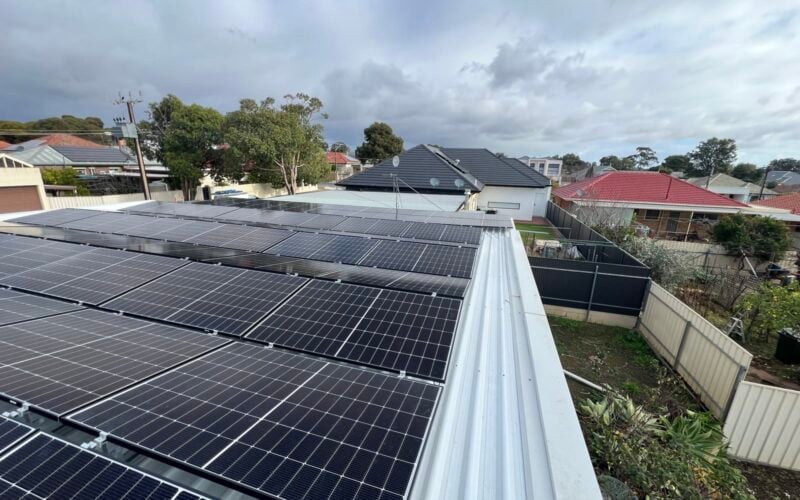

On the roof, 63 Jinko Solar Tiger Neo panels at 440 W make 27.72 kW, all black, on Clenergy racking in an east-west tilt frame setup. The battery is a white unit with a black band, mounted near the PV and energy storage isolator board on dark blue-grey brick.

What we installed

  • Solar panels63 x Jinko Solar Tiger Neo JKM440N-54HL4, 440 W
  • Inverters2 x Sungrow Hybrid Three Phase SH15T, 15 kW each
  • BatterySungrow SBH400, 40 kWh usable
  • RackingClenergy racking with an east-west tilt frame setup
  • BackupExtra sub panel with 2 x Hager three phase changeover switches for whole-home backup
