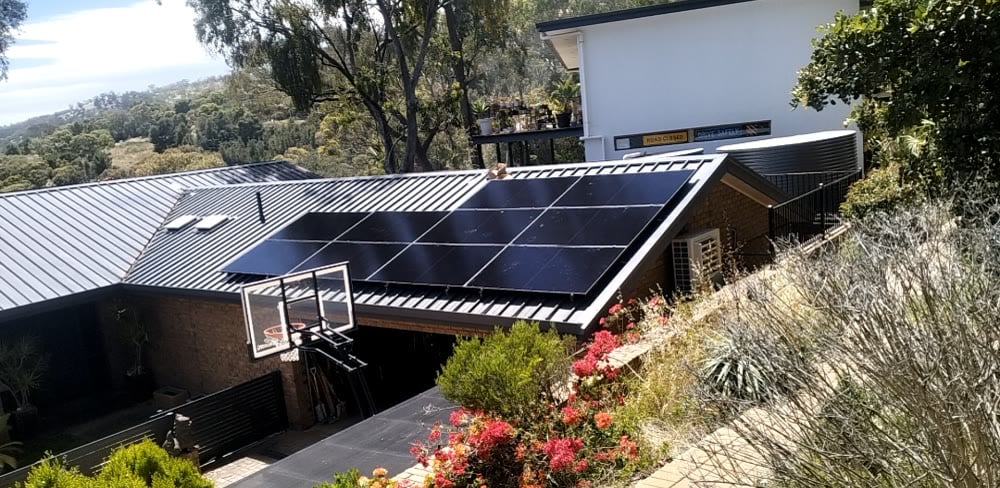

15.68 kW Solar and 31.2 kWh Battery Installation in Mitcham, SA

33 AIKO panels with eight shade optimisers, a single phase Sigenergy inverter and four battery modules with backup.

Mitcham, SAResidential15.68 kW31.2 kWhCompleted December 2025
15.68 kW Solar and 31.2 kWh Battery Installation in Mitcham, SA

The project at a glance

Location
Mitcham, SA
Completed
December 2025
Type
Residential
Solar
15.68 kW
Inverter
Sigenergy SigenStor EC 10.0 SP, 10 kW
Battery
31.2 kWh
Backup
House backup gateway
Roof
tin
Brands
Sigenergy

About this solar installation in Mitcham

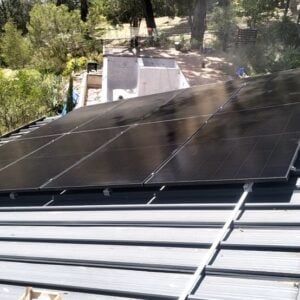

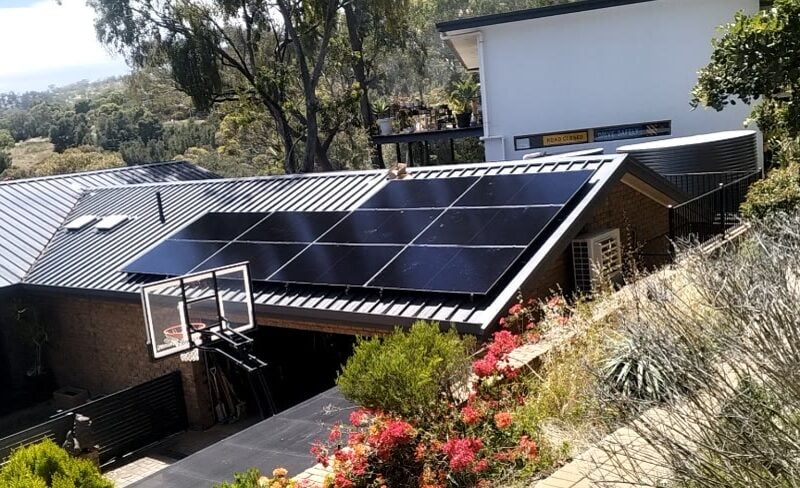

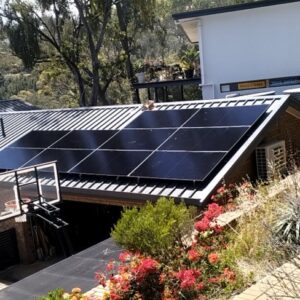

This was a new solar and battery install on a brick house in Mitcham. Eight Tigo shade optimisers went onto selected panels, and all 33 panels are fixed with Klip-Lok brackets. The panels are AIKO Neostar 2P units at 475 W each, 15.68 kW in total, and the dark panels sit on a grey standing seam metal roof, with gum trees around the property on the hillside.

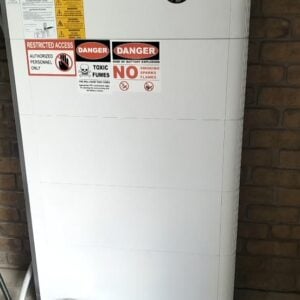

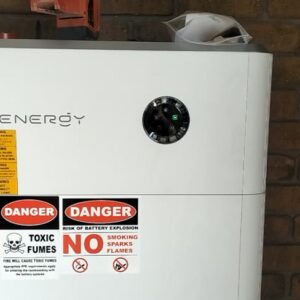

The inverter is a Sigenergy SigenStor EC 10.0 SP, single phase and rated at 10 kW, with four Sigenergy SigenStor BAT 8.0 modules, 31.2 kWh usable. The battery is mounted on an external brick wall with danger signage.

A Sigenergy gateway provides single phase backup, set up to protect what it can during a blackout. Sigenergy is a brand we are certified to install.

What we installed

  • Solar panels33 x AIKO Neostar 2P AIKO-A475-MAH54Mw, 475 W
  • InverterSigenergy SigenStor EC 10.0 SP, 10 kW, single phase
  • Battery4 x Sigenergy SigenStor BAT 8.0, 31.2 kWh usable
  • BackupSigenergy gateway, single phase, house backup
  • Optimisers8 x Tigo shade optimisers
  • Roof fixing33 x Klip-Lok brackets
