14.08 kW Solar and 20 kWh Battery Installation in Greenwith, SA

32 Jinko panels, a 15 kW three phase Sungrow inverter and 20 kWh battery, a heat pump, and 19 existing Q Cells panels refitted on the shed.

Greenwith, SACommercial14.08 kW20 kWhCompleted August 2024
14.08 kW Solar and 20 kWh Battery Installation in Greenwith, SA

The project at a glance

Completed
August 2024
Type
Commercial
Solar
14.08 kW
Inverter
Sungrow SH15T, 15 kW
Battery
20 kWh
Roof
tin
Brands
Sungrow

About this solar installation in Greenwith

Three jobs ran together at this Greenwith home: a new solar and battery system, a heat pump hot water unit, and a shed refit of panels the household already owned.

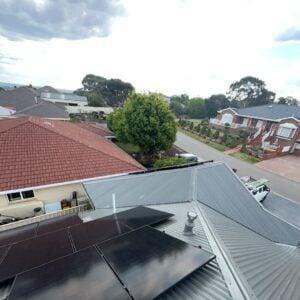

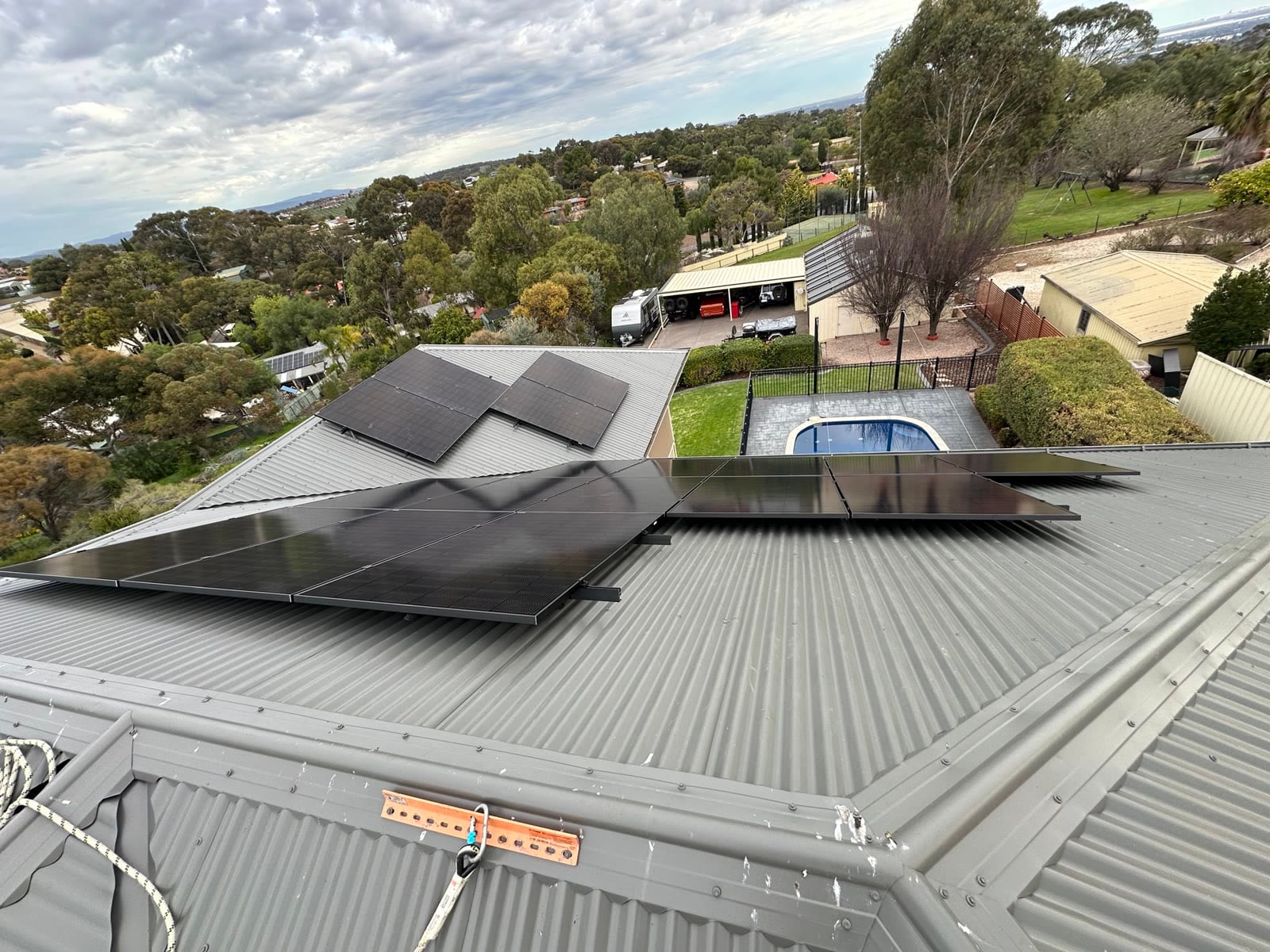

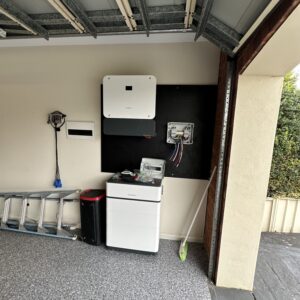

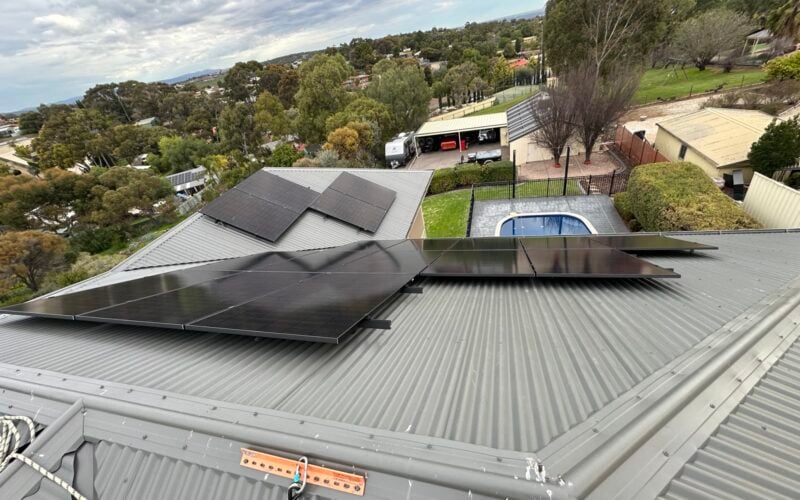

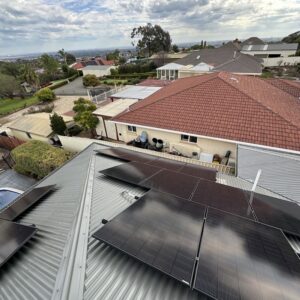

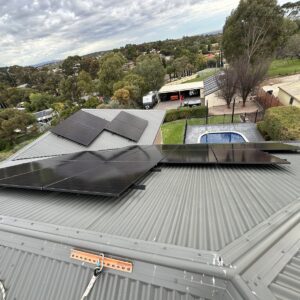

The main system is 32 Jinko Tiger Neo Satin panels at 440 W, 14.08 kW, split across several faces of a grey Colorbond roof. In the garage, a three phase Sungrow SH15T hybrid inverter, 15 kW, and a Sungrow SBH200 battery, 20 kWh usable, sit on a black backing board. Sungrow is a brand we are certified to install.

On the shed, we refitted 19 existing Q Cells panels, running to the existing Fronius Symo 6 inverter, on a ply board the customer supplied. The heat pump is an IHEATPASHW015-270LD, installed by a licensed plumber.

What we installed

  • Solar panels32 x Jinko Tiger Neo Satin JKM440N-54HL4R-B, 440 W
  • InverterSungrow SH15T hybrid, 15 kW, three phase
  • Battery1 x Sungrow SBH200, 20 kWh usable
  • Hot waterHeat pump IHEATPASHW015-270LD, installed by a licensed plumber
  • Existing panels19 x existing Q Cells panels refitted on the shed with the existing Fronius Symo 6
