39 kWh Sigenergy Battery Installation in Hillbank, SA

A 39 kWh usable Sigenergy battery with a 20 kW three phase inverter and a house backup gateway, in a Hillbank garage.

Hillbank, SABatteries39 kWhCompleted June 2026
39 kWh Sigenergy Battery Installation in Hillbank, SA

The project at a glance

Location
Hillbank, SA
Completed
June 2026
Type
Batteries
Inverter
Sigenergy SigenStor EC 20.0 TP, 20 kW
Battery
39 kWh
Backup
Three phase gateway, house backup
Brands
Sigenergy

About this battery installation in Hillbank

Take off the Fronius inverter and put a Sigenergy battery in the garage. That was the brief at this Hillbank home.

The new inverter is a Sigenergy SigenStor EC 20.0 TP, 20 kW and three phase, with five SigenStor BAT 8.0 modules. Each is 8.06 kWh, or 7.8 kWh usable, so 40.3 kWh in total and 39 kWh usable. The old Fronius AC cable is reused for the inverter supply. A three phase Sigenergy gateway sits next to the switchboard and provides house backup.

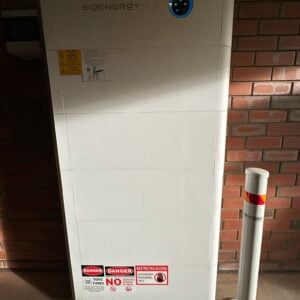

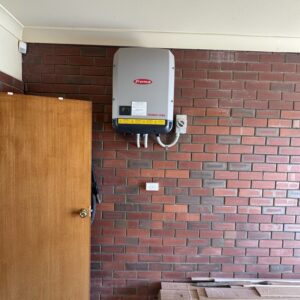

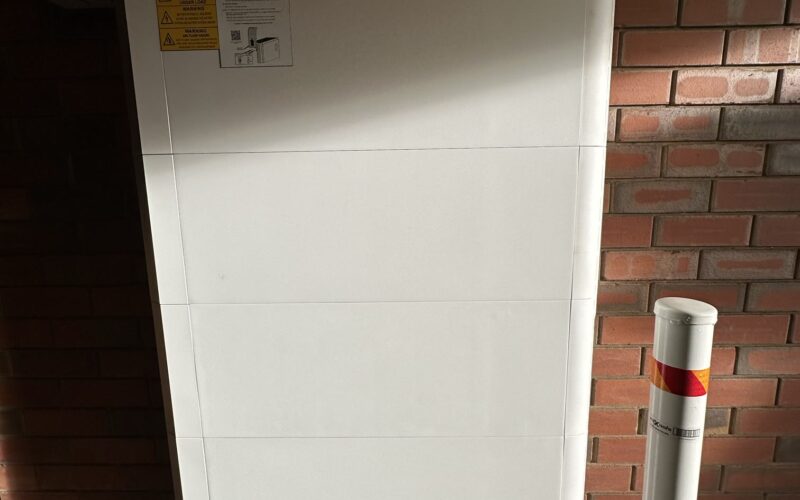

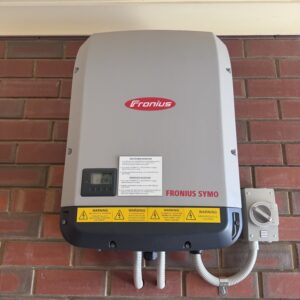

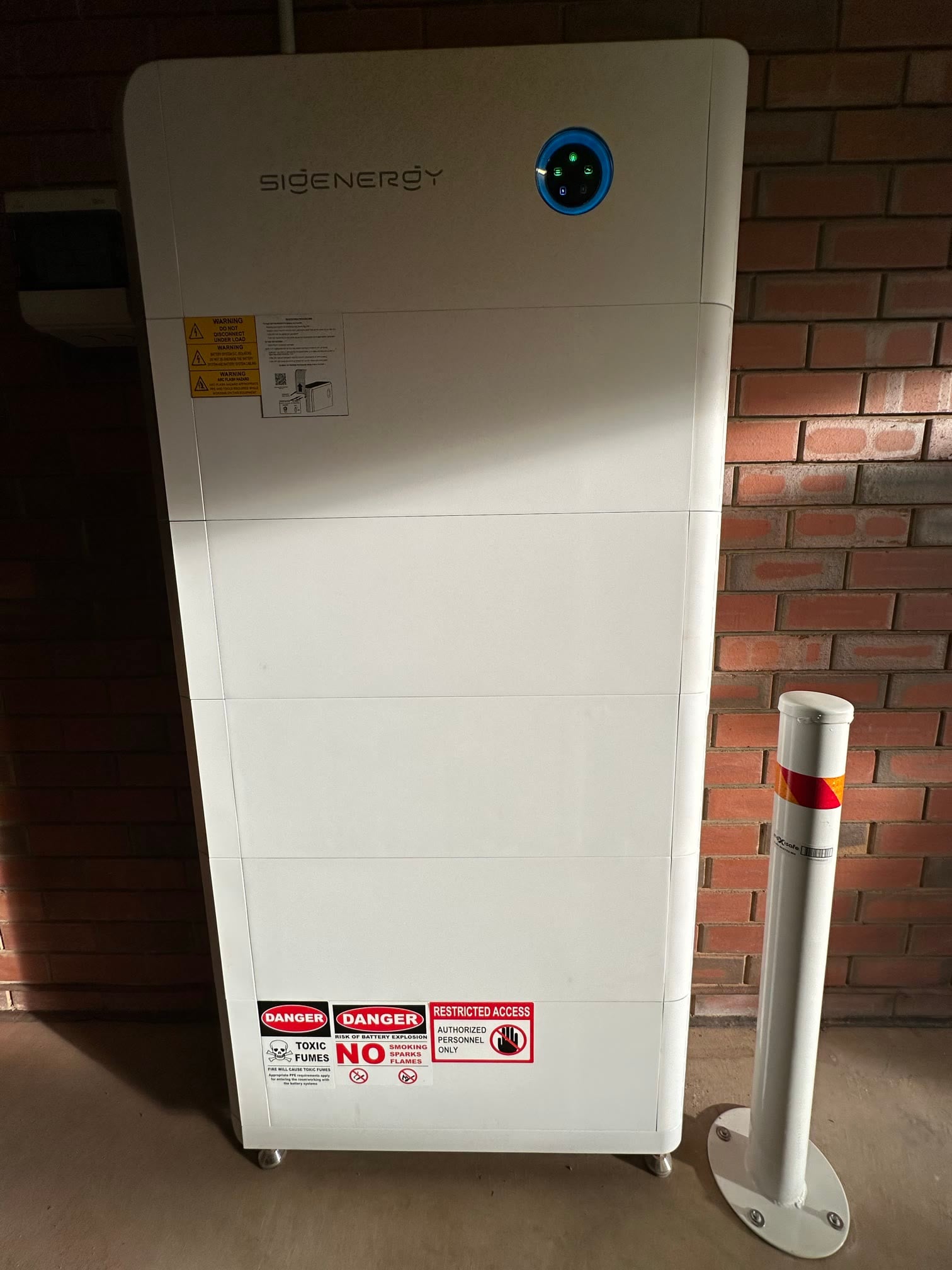

The tall white battery stands against a brick wall, with the one bollard installed beside it, white and red. A Fronius inverter with a labelled isolator box appears in the photos, wall-mounted on red brick under the carport.

We are a Sigenergy certified installer.

What we installed

  • InverterSigenergy SigenStor EC 20.0 TP, 20 kW, three phase
  • Batteries5 x Sigenergy SigenStor BAT 8.0, 8.06 kWh each (7.8 kWh usable)
  • BackupSigenergy three phase gateway, house backup
  • Protection1 x bollard
  • CablingOld Fronius AC cable reused for the inverter supply
