17.6 kW Solar and 16 kWh Battery Installation in Flagstaff Hill, SA

A new build with a skillion roof: 40 Jinko panels, a three phase Sungrow inverter and a 16 kWh battery, installed in stages at Flagstaff Hill.

Flagstaff Hill, SABatteries17.6 kW16 kWhCompleted August 2024
17.6 kW Solar and 16 kWh Battery Installation in Flagstaff Hill, SA

The project at a glance

Completed
August 2024
Type
Batteries
Solar
17.6 kW
Inverter
Sungrow Hybrid Three Phase SH15T, 15 kW
Battery
16 kWh
Brands
Sungrow

About this battery installation in Flagstaff Hill

New build, skillion roof, switchboard upstairs. The Flagstaff Hill job had more to plan than most, and the layout was agreed on site before the battery was delivered.

The skillion roof meant a first fix early on, with the rest of the install booked afterward. Then came 40 Jinko Solar Tiger Neo panels at 440 W, 17.6 kW, on Clenergy racking with 40 Kliplok brackets.

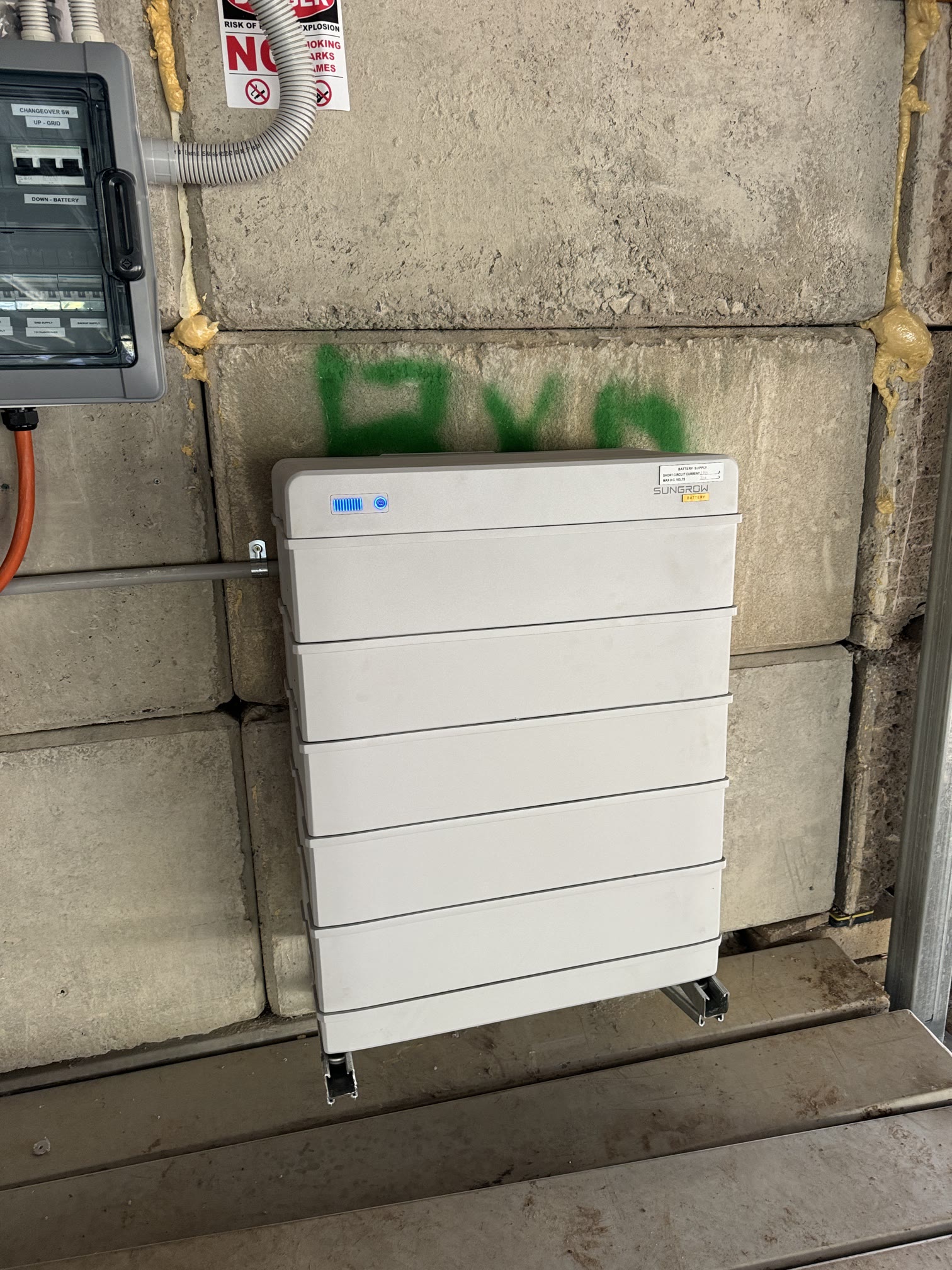

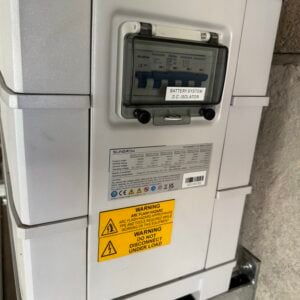

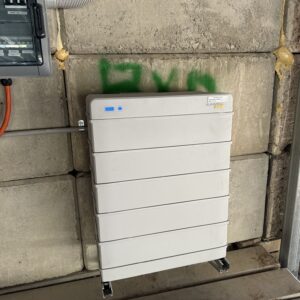

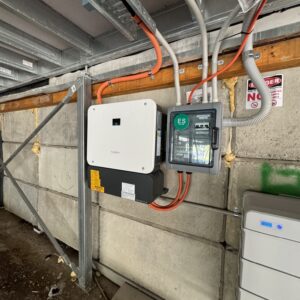

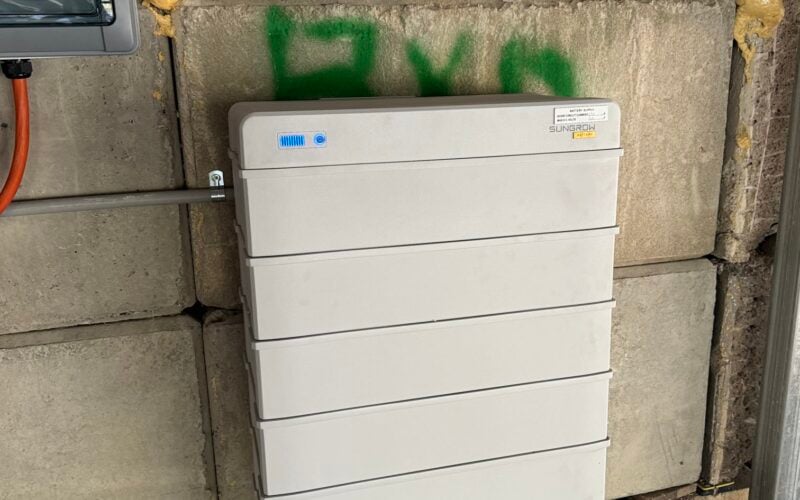

Sungrow certifies us on the Hybrid Three Phase SH15T inverter, 15 kW, and it runs with a Sungrow SBR160 battery of 16 kWh usable. The white battery stack stands on a block wall under the carport, with orange cabling, the inverter and a DC isolator beside it. The PV and energy storage isolator board is on a steel-clad wall.

What we installed

  • Solar panels40 x Jinko Solar Tiger Neo JKM440N-54HL4, 440 W
  • InverterSungrow Hybrid Three Phase SH15T, 15 kW
  • BatterySungrow SBR160, 16 kWh usable
  • Mounting40 x Kliplok brackets on Clenergy racking
